Soundlink audible altimeter

Audible skydiving altimeter

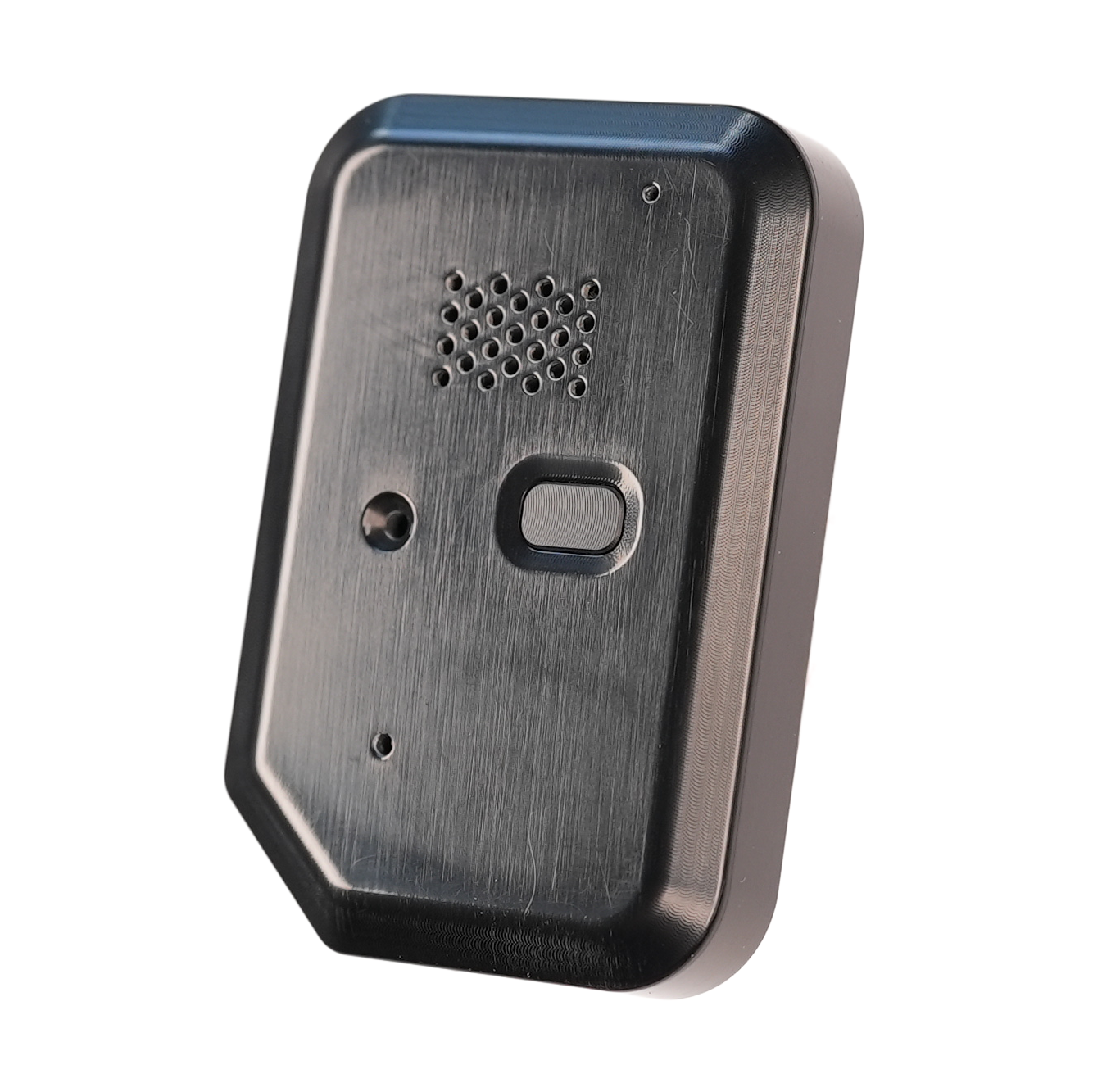

Soundlink Audible Altimeter

SKU DV-SL1

Soundlink is our advancement of the audible for skydiving and integrates fully into the Deep and Steep product ecosystem. Stay aware with audio alerts, either as tone alarms or voice altitude announcements.

$390.00

In stock (can be backordered)

The Soundlink works on its own, straight out of the box. Connect it to an Insight or Stratos altimeter (sold separately) for spoken GPS feedback during the skydive.

Altitude Awareness

Tone alarms and voice announcements in freefall and under canopy

Soundlink
Altitude Awareness Redefined

The Soundlink is designed to fit seamlessly with our visual altimeters. Use the phone app to configure your Soundlink, or pair it with the Insight or Stratos and set your audible alarms directly from our GPS enabled altimeters. Choose up to 4 freefall and 4 canopy alarms, or enable altitude announcements to have the Soundlink speak altitudes during your skydive.

Alarms and announcements

Freefall alarms

Up to 4 alarm altitudes with distinct tone patterns.

Canopy alarms

Up to 4 alarm altitudes. After the final canopy alarm every other sound stops, so you can focus on landing.

4 presets

Save alarm sets for your most common jump profiles and switch between them from the button menu or wirelessly.

Altitude announcements

Spoken every 1,000 feet (500 m) in freefall, and every 100 feet under canopy below 1,500 feet.

Volume and pitch

Separate volume for freefall and canopy alarms/announcements. 5 volume levels.

Advanced Announcements (Requires Insight or Stratos Connection)1

Current glide

Real-time glide ratio as you change control inputs.

LZ glide

The glide ratio you need to reach your marked landing zone.

Groundspeed

Hear how fast you are moving over the ground while you fly.

Groundtrack

Your direction over the ground, in degrees.

LZ distance

Spoken distance to your marked landing zone.

Direction to LZ

Hear which way to turn to reach your marked landing zone.

CP Open Info

One announcement after opening: the glide ratio you need to make it back to the LZ.

Announce frequency

Control how often you hear the feedback.

Simple and Secure

Always on

The Soundlink is always on, waiting for your airplane ascent to signal the start of a skydive.

One button, one LED

A simple 1-button menu system to access key functionality. Overview

Pair once

Easy and secure: the Soundlink speaks a six-digit passkey when you pair, so nobody else can pair to your audible. Wireless connect

Settings from your phone or altimeter

Alarms, announcements, volume and pitch are set from an Insight, Stratos or the Deep and Steep app. Settings

Units, time and LZ offset synced

Connect to an Insight or Stratos and the Soundlink picks up your altitude units, time, date and active LZ offset.

Power

12 months of standby

From a full charge the Soundlink can sit ready for up to a year2.

20-minute charge

Enough to get through a day of jumping.

1.5 hour full charge

From 0% to 100% in about 1 hour 30 minutes.

USB-C

Charging with USB Power Delivery.

Low power by default

Bluetooth stays off until you turn on wireless connect, or until a connected announcement needs it on the climb.

  1. Advanced announcements require an active connection to Insight/Stratos altimeters. Voice altitudes and vertical speed are native to the Soundlink and do not require a wireless connection.
  2. Battery life while jumping depends on the features in use. Bluetooth connections and frequent alarms and announcements drain the battery more quickly.
Key specs
AlarmsUp to 4 freefall and 4 canopy alarm altitudes, saved in 4 presets
AnnouncementsAltitude and vertical speed on its own; spoken GPS feedback when connected to an Insight or Stratos
BatteryUp to 12 months of standby; a 20-minute charge covers a day of jumping
BluetoothWireless connectivity to Insight, Stratos and the Deep and Steep app
General
ModelSOUNDLINK (SKU DV-SL1)
Dimensions58 mm × 39 mm × 10 mm (2.3″ × 1.6″ × 0.4″)
Weight32 g (1.1 oz)
ControlsOne button and one LED, with a spoken menu
Speaker102 dB maximum
Alarms and announcements
Freefall alarmsUp to 4
Canopy alarmsUp to 4; all audio stops after the final alarm
Presets4, selected from the button menu or wirelessly
Standalone announcementsAltitude, vertical speed
Connected announcementsGroundspeed, groundtrack, LZ distance, LZ glide, current glide, direction to LZ; with an Insight or Stratos connected
CP Open InfoGlide ratio needed to reach the LZ, announced once after opening; with an Insight or Stratos connected
Announce modeFreefall and canopy, freefall only, or canopy only
Announce frequency5 settings from slow to fast, separate for freefall and canopy
Volume5 settings. Separate freefall and canopy volumes.
Alarm pitch5 settings
Power
StandbyUp to 12 months from a full charge
Charge portUSB-C
Charge voltage5 V DC
Full chargeAbout 1.5 hours from 0% to 100%
Quick charge20 minutes is enough for a day of jumping
Charging temperature0 °C to 55 °C (32 °F to 131 °F)
USB Power DeliverySupported
Environmental
Operating temperature−20 °C to 55 °C (−4 °F to 131 °F)
Storage temperature0 °C to 35 °C (32 °F to 95 °F), stored at 40% to 60% charge
Maximum altitude9,146 m (30,000 feet above MSL, based on pressure)
Water resistanceNone. Keep water, dirt and sand out of the speaker holes
Connectivity
InsightInsight GPS Altimeter, sold separately
StratosStratos HALT GPS Altimeter, sold separately
Phone appDeep and Steep app, for settings, units and LZ offset
USBUSB-C; appears as a USB drive in USB connect mode
